Cambo Estate decided to have new keyrings made for their guest accommodation. They wanted to use chunky fobs of wood from the estate and engrave them with their logo on one side and accommodation details on the other side. We knew that the logo would be a challenge as it’s highly detailed. How would it look when scaled right down?
Engraving room names
Once the wooden blocks were ready, we could begin. They were 80 x 30mm, and felt smooth, chunky and light in the hand. Large enough to be hard to loose, but small enough to be easily carried!
Cambo wanted the text to be raster (fill in) engraved for maximum impact. They provided the artwork for all the accommodation names in black and white pdf files, which was perfect as it ensures good engraving quality. Text for each name was shown in rectangles representing the fob size so the engravings were located where the customer wanted them, offset to the right to leave room for holes to be drilled.
As the engravings were a good size, we engraved using our usual machine settings for wood. We had to secure the fobs in the machine to stop them from moving during production. Compressed air is blown at 1.5bar at the engraved surface to get best results, and this can blow small items out of place.
Engraving the Cambo Estate logo
Cambo’s logo is very detailed. It’s difficult to downscale logos like so that fine detail isn’t lost. In this case, the bird and the sheaf of wheat at the top of the logo and the helmet were the most vulnerable areas. It they engraved well at the size required, the logo would look fine.
Again, the customer supplied the logo as a black and white pdf. We had to rescale the logo dramatically to fit the fobs. Using vector artwork means that this can be done with no reduction in artwork quality.

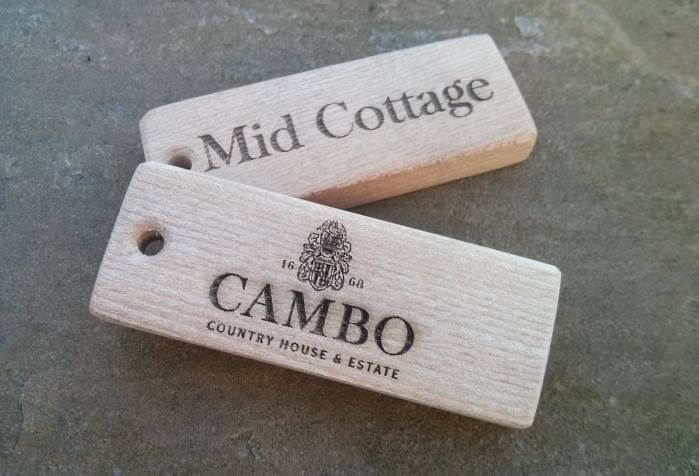

Struan and Frances were open minded about how they wanted the logo to appear on the keyrings. Would the logo look better engraved at the bottom of vertical keyrings or in the middle of horizontal keyrings (pictured)? From the start, I was sure that the latter option would be better as the logo could be made bigger, increasing the chances of success.
We did sample raster engraves of both options. My hunch was right. Horizontally engraved keyrings looked good and were just big enough to see all the detail. Including the text, the logo is 24 x 36mm, and the coat of arms alone is tiny at 13 x 15mm.
A lot of details were lost on the vertical sample. Unfortunately, it was just too small to work well.
Cambo approved the horizontal option, and we engraved all the backs of the keyrings. We used a much slower speed to engrave the logos – a quarter of the speed used to engrave the accommodation names! This kept the logo as sharp as possible. We also engraved the coat of arms with more power than the text underneath to give more definition.
Cambo drilled and countersunk holes in all the engraved fobs ready for the split ring keyring hoops.
