Crail Castle Walkway panorama

Crail Castle Walkway panorama

The Crail Preservation Society wanted to refresh the Crail Castle Walkway panorama showing landmarks on the opposite side of the Firth of Forth. The old one was printed and mounted in a box to protect it from the weather, but it hadn’t survived the elements in that exposed spot. This time, they wanted it engraved on a piece of wood to fit the location.

I love panoramas, so I was really excited about this project!

Converting the panorama artwork for engraving

Dennis wanted to use the artwork that had been used for the previous panorama. It had been created by artist Kurt Diggelman. It had to be modified as it was in colour and the laser can’t engrave in colour. Catriona of CatMac Design is a graphic designer who helps me out with things like this, and she worked with Dennis to a create black and white vector artwork conversion of Kurt’s image.

One of my concerns was whether the text would be easy to read without people having to bend down. To check this, I performed some test engraves of the smallest text and they worked better than I’d expected.

A piece of white oak

Dennis knew Frazer Reid of FAR Cabinet Makers, so he asked him about what wood would be best to use for this project. Not only did it have to look beautiful, but it had to be suitable for outdoor display in an exposed spot. Frazer suggested white oak, and supplied a beautifully prepared piece 1330 x 385mm and about an inch thick. The maximum width of the machine is 1340mm, so it was a snug fit!

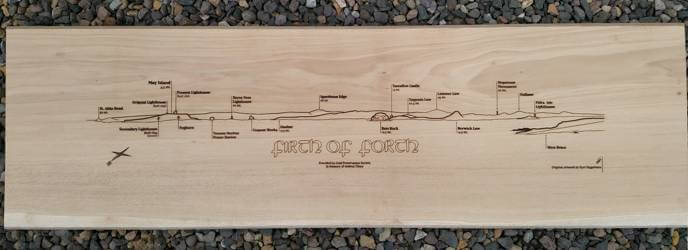

Crail Castle Walkway panorama

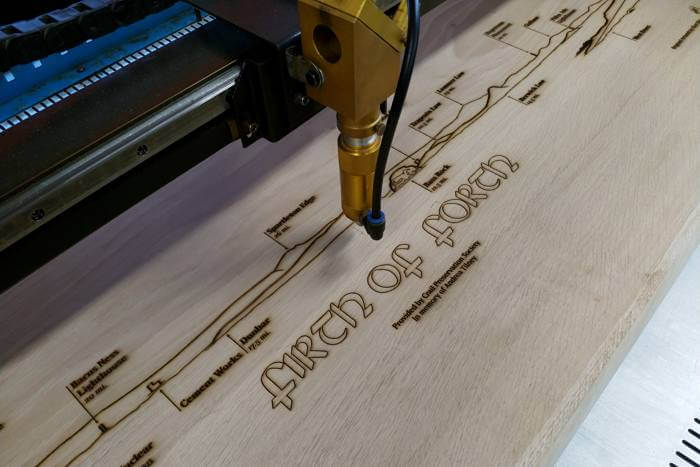

Engraving the panorama detail

I used machine settings to make sure the detail of the text would be as clear as possible. Then I engraved the wood with maximum power for best possible contrast between the engravings and the wood. Dennis was delighted with the results. It’s hoped that the panorama will be installed this week in its new home.
